Our ManufacturingInfrastructure in Chennai
Engineering, toolroom, and molding units run together under one roof in Ambattur, Chennai.
- 16,000sq ft shop floor
- 2units in SIDCO, Ambattur
- 80+team members
- 10molds per month
- 55T-650Tmolding machines
- 50T-800Ttool development
- 2000 gmax shot weight
- 450 × 350 mmmax part size
Two Units, One Workflow
The toolroom and production sit a short walk apart in SIDCO North Phase, Ambattur, so every tool moves from design to press without leaving the estate.
Unit 1 Toolroom
Mold design, mold and mold base manufacturing, EDM and tool assembly

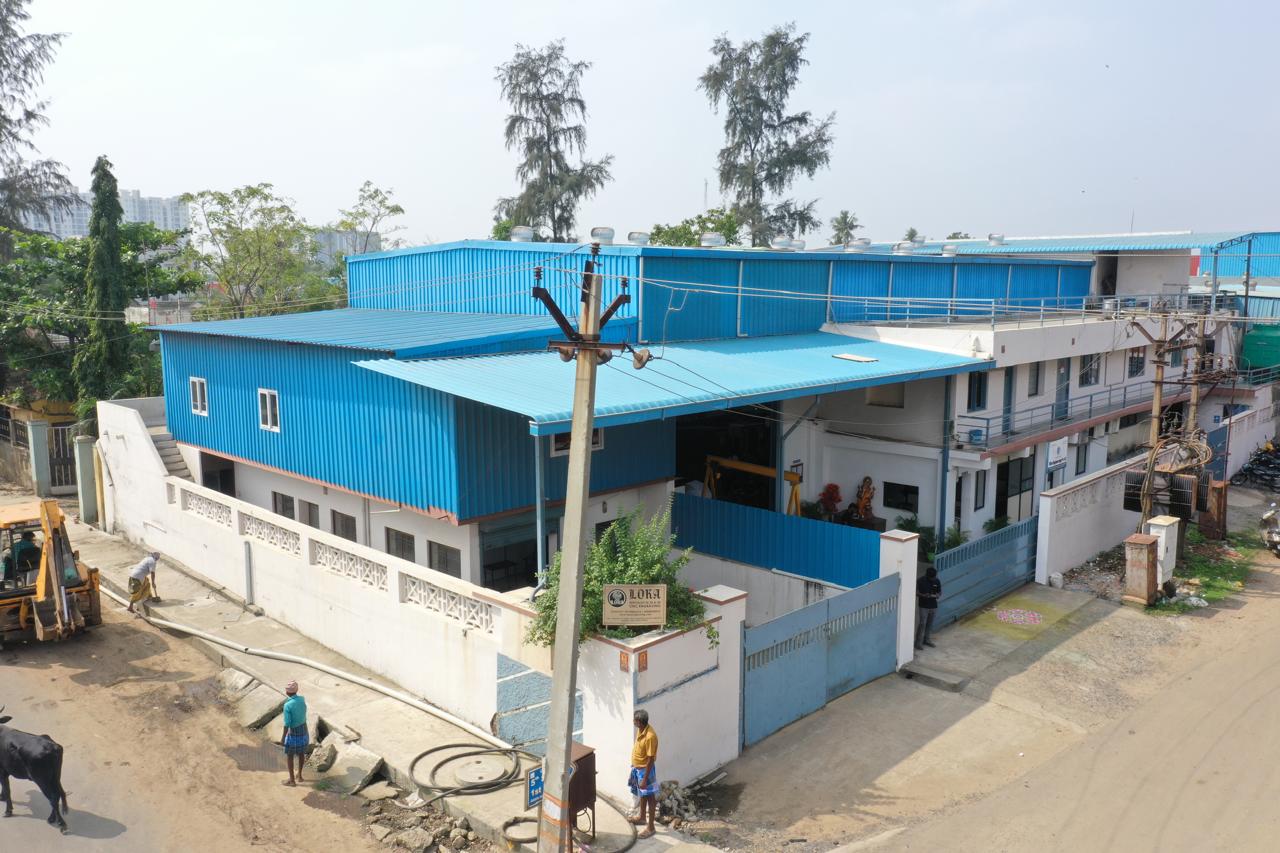

No. 144, North Phase, SIDCO Industrial Estate, Ambattur, Chennai 600098
Unit 2 Production
Injection molding on 55T to 650T machines, with robots and auxiliaries

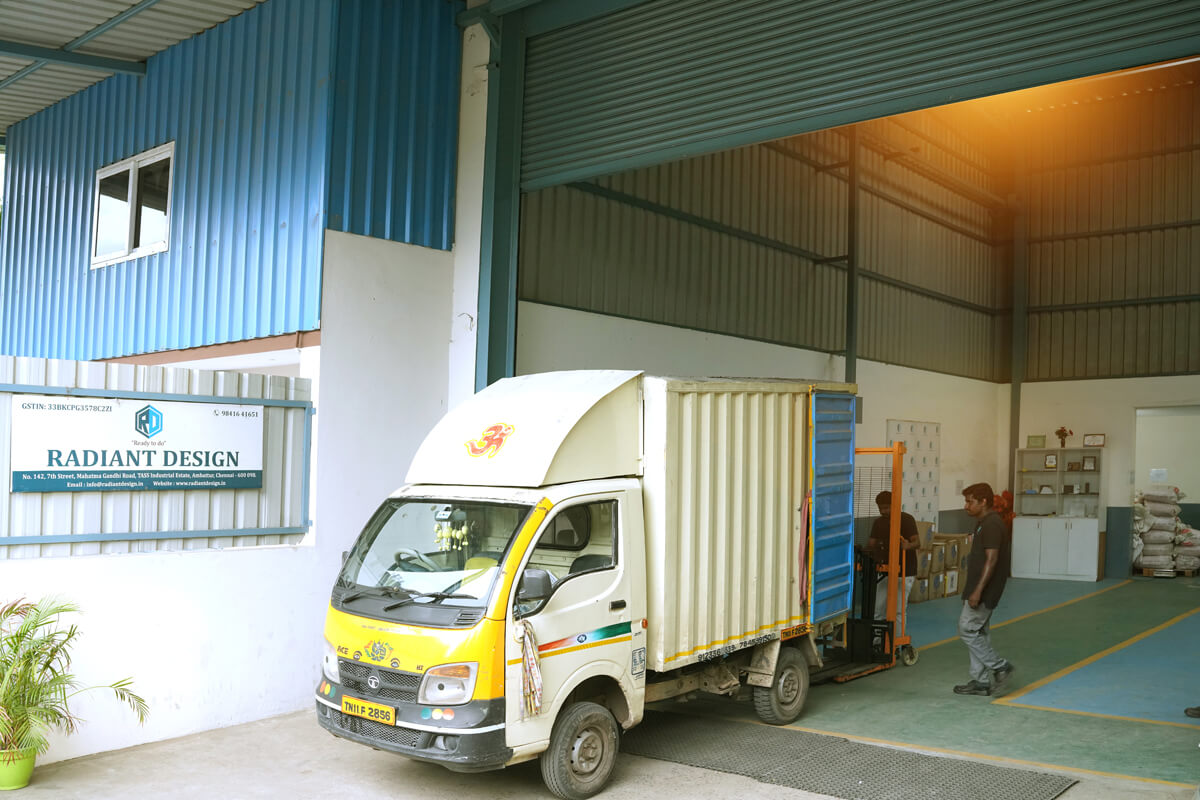

No. 312, North Phase, SIDCO Industrial Estate, Ambattur, Chennai 600098
In-House Mold Design and Flow Simulation
Each mold begins in our design team: the part is reviewed for manufacturability, validated by flow simulation, and fully designed before machining starts.
- DFM and moldability analysis
- Mold flow analysis
- Gate, runner, and cooling layout
- Cavity layout and 3D mold design
Software
Part and mold design
Mold design and CAM
Mold steels
- P20Pre-hardened
- 718HPre-hardened
- NAK80Mirror polish
- H13Hardened inserts
- S136Stainless
Unit 1 · No. 144
Precision Toolroom Machinery
Our toolroom runs VMC machining, spark and wire EDM, CNC drilling, surface grinding, and manual milling for precision tooling.
| Machine | Make | Spec (mm) | Qty |
|---|---|---|---|

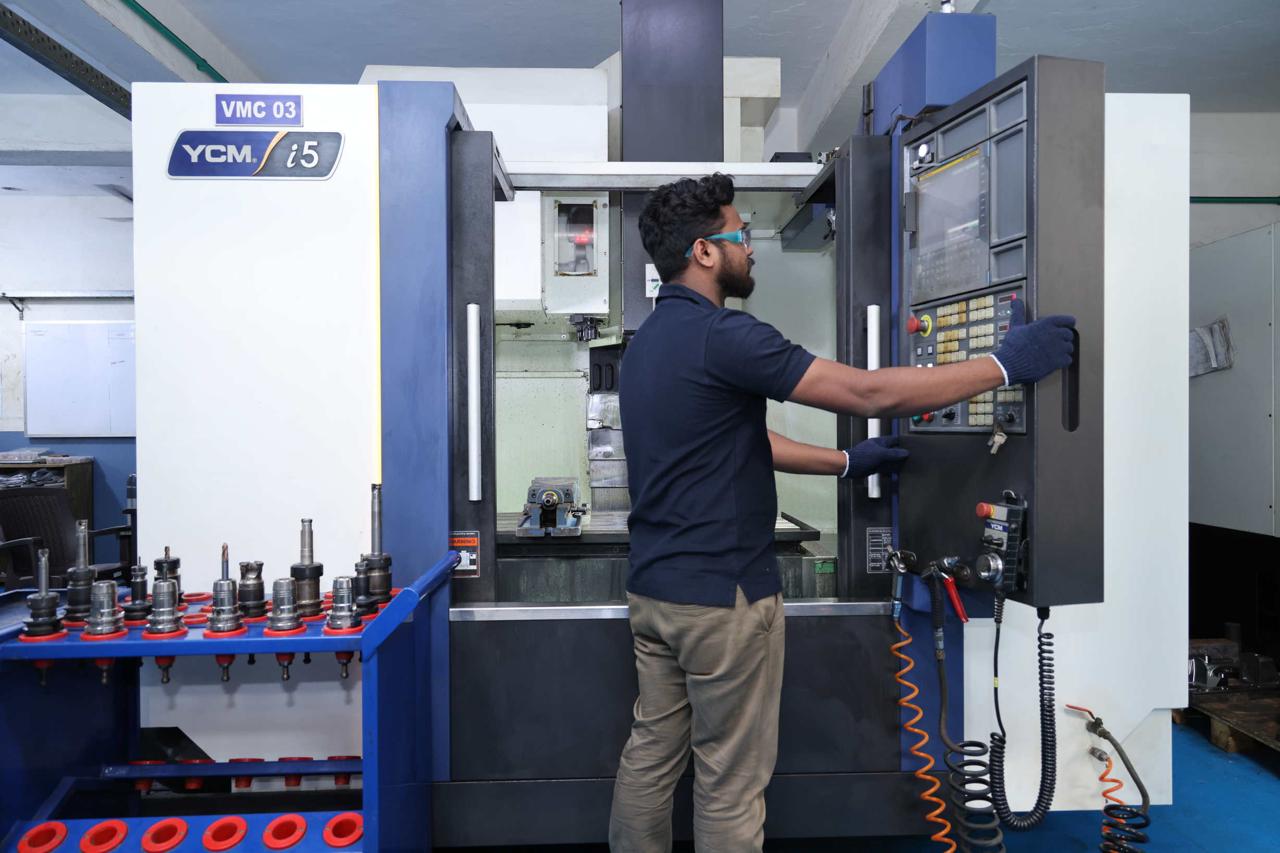

| VMC | YCM i5 | 1020 × 520 × 540 | 2 |

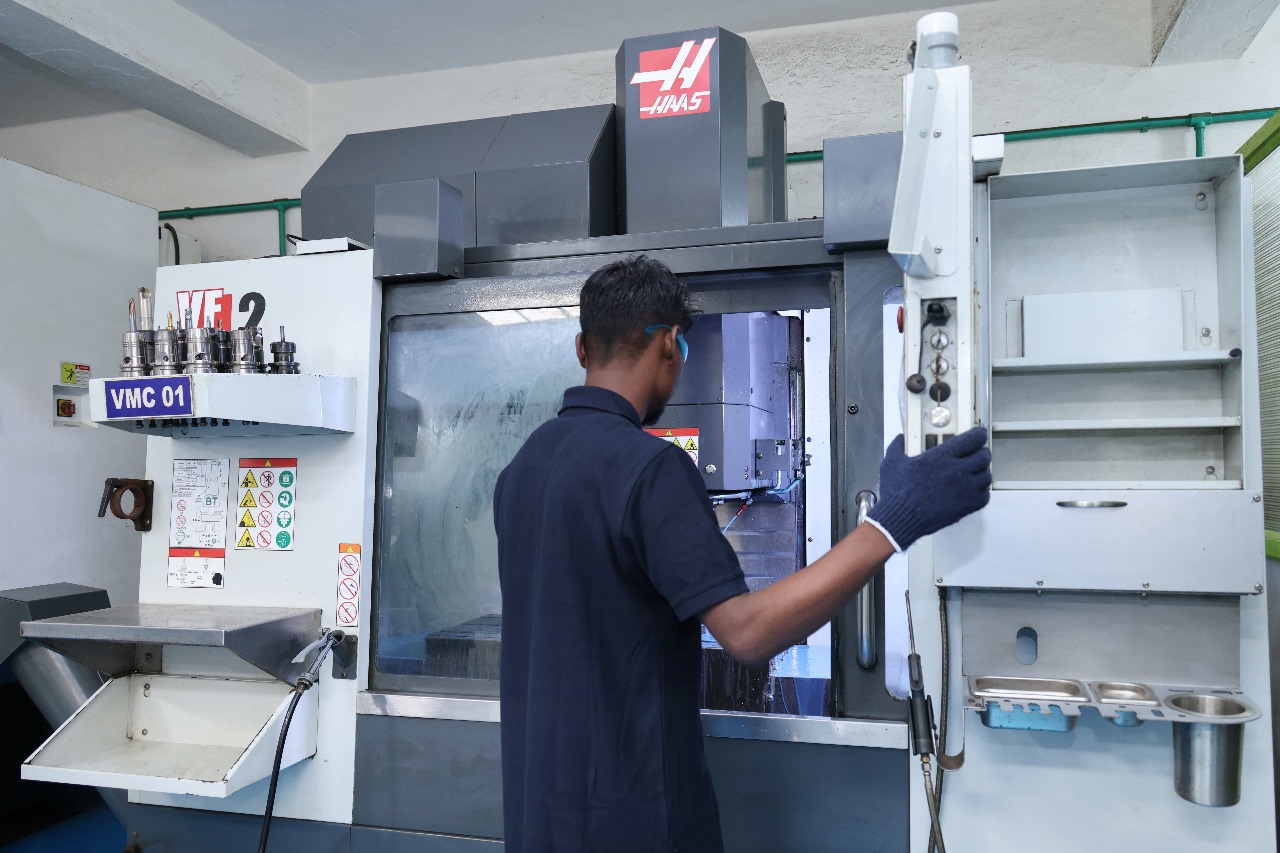

| VMC | Haas VF2 | 760 × 406 × 508 | 1 |
| VMC | STM VL1300 | 1300 × 700 × 700 | 1 |
| Spark EDM | Makino EDGE 3i | 450 × 300 × 320 | 1 |
| Spark EDM | Makino EDGE 2i | 300 × 250 × 250 | 1 |
| Wire EDM | Fanuc Robocut C400 | 400 × 300 × 255 | 1 |
| CNC Super Drill | Krisha | 400 × 300 × 280 | 1 |
Mold base plates are machined on the vertical machining centers listed above, with pockets and guide bores cut to the dimensions of each injection mold design.
Support equipments
Conventional machines and a crane supporting the CNC and EDM work.
8 equipments
- Surface grindersPrecision grinding of mold plates and inserts for flatness and surface quality.×3
- Manual millingMilling of mold components alongside the CNC machines.×2
- LatheTurning of round mold components such as pins and bushes.×1
- Radial drillingDrilling of pin holes and other holes in mold plates.×1
- EOT crane3-ton capacity lifting of molds and mold plates.×1
Unit 2 · No. 312
Injection Molding Machines 55T to 650T

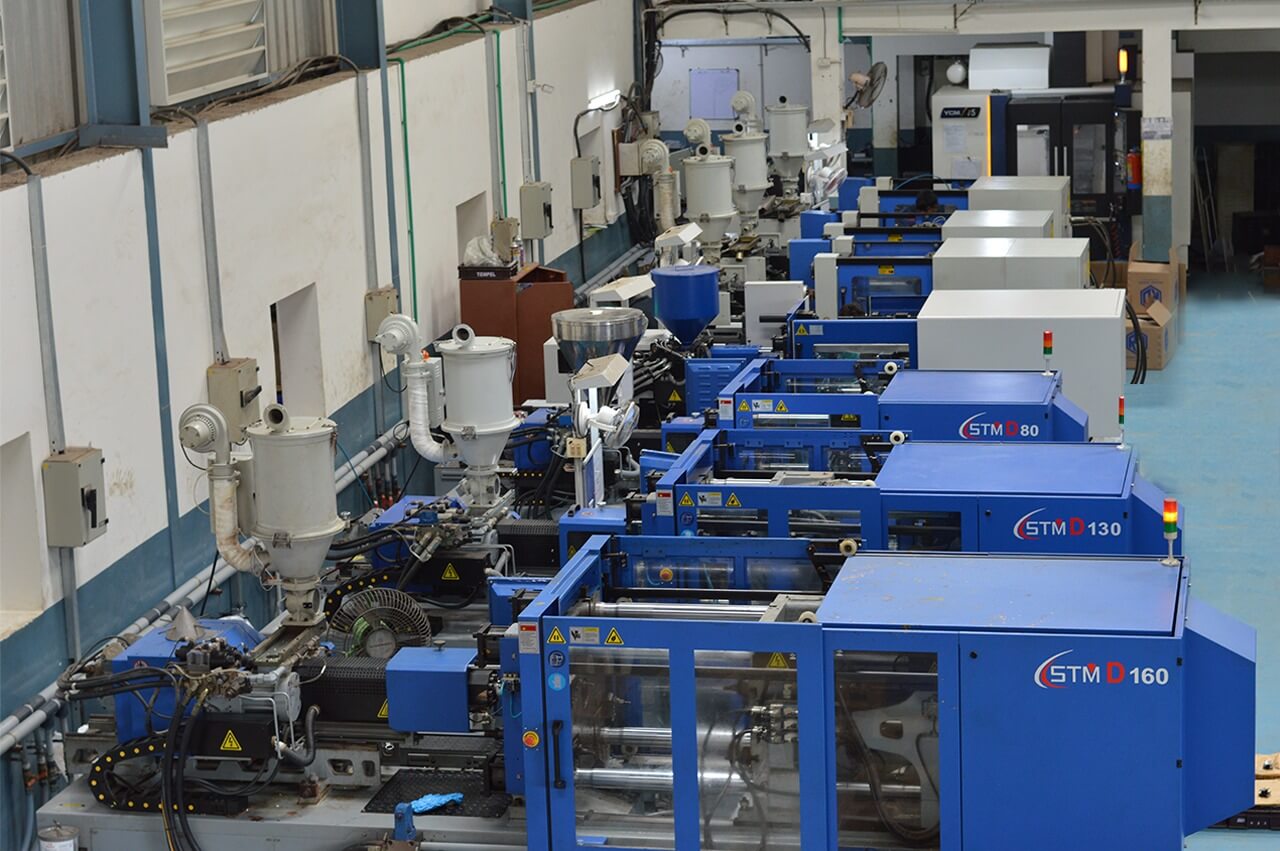

Seventeen injection molding machines, from 55T to 650T, cover a range of part sizes and production volumes.
| Tonnage | Make | Qty |
|---|---|---|
| 55T vertical | TKC double slider | 1 |
| 80T | Haitian, Electronica, STM | 4 |
| 110T | Electronica | 1 |
| 120T | Haitian | 6 |
| 130T | STM | 1 |
| 160T | STM | 1 |
| 200T | Haitian | 1 |
| 250T | Haitian | 1 |
| 650T | Shibaura | 1 |
Auxiliary equipments
Supporting units for mold temperature, material loading, and part handling.
23 equipments
- Mold Temperature Controllers (MTC)Holds the mold at its set temperature×2
- Auto Loaders & Dosing UnitsFeeds and doses material, one per machine×14
- ChillersSupplies chilled water for mold cooling×2

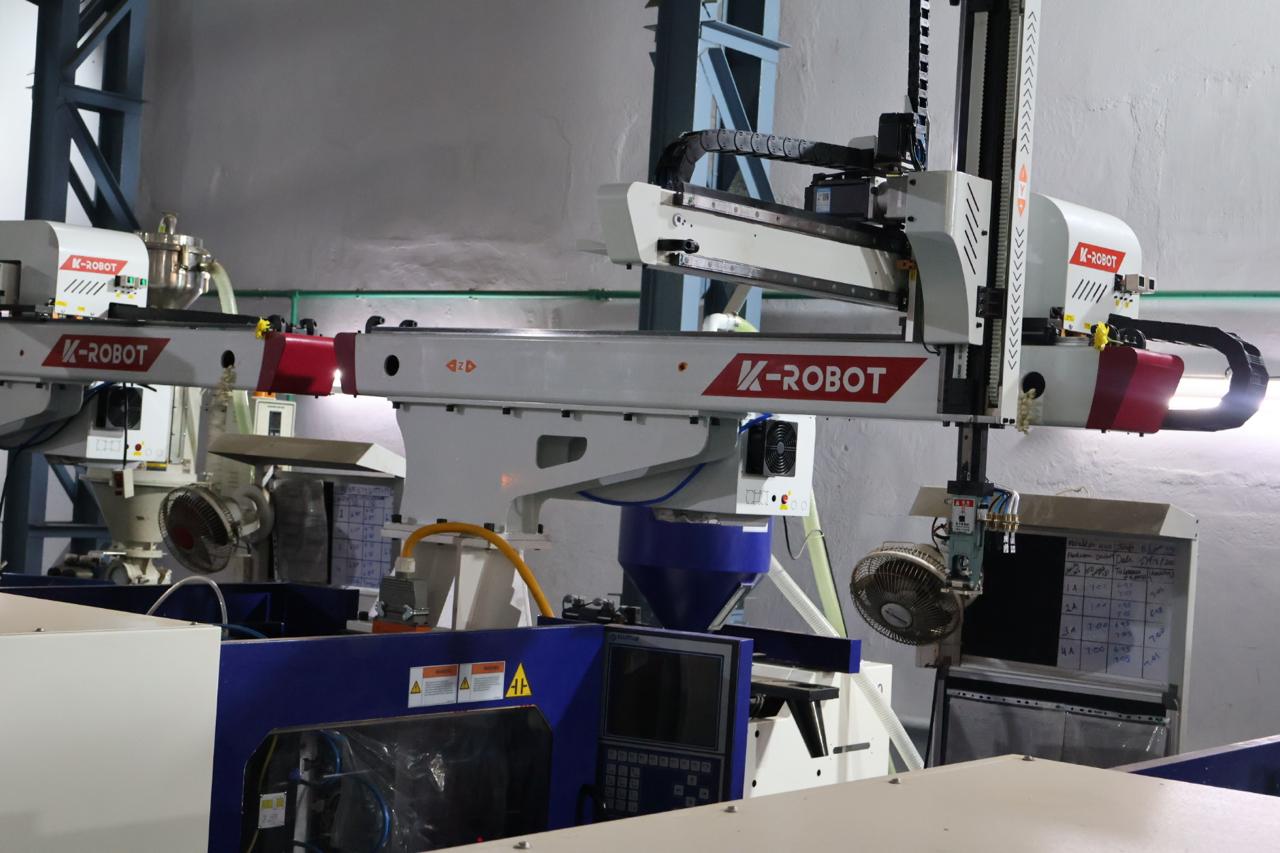

- Pick & Place RobotsRemoves molded parts from the mold×4
- EOT crane, 3-tonLifts molds and heavy mold components×1
Mold Types and Job Work Capabilities
Our toolroom manufactures Class 101, high-cavity, insert, and unscrewing molds, and provides EDM and insert machining as job work.
Class 101 Molds
Molds built for very high-volume production, constructed from hardened steel for long tool life.
High-Cavity Molds
Molds with multiple cavities that produce several parts in every molding cycle.
Insert Molds
Inserts of metal, plastic, or filter material are positioned in the mold and molded into the part.
Unscrewing & Multi-Function Tools
Molds for threaded parts, using built-in unscrewing mechanisms to release the part from the mold.
EDM & Insert Machining Job Work
Spark EDM, wire-cut EDM, and insert machining provided as job work for customer projects.
Quality Control and Inspection Process
An overview of the measuring equipment and quality credentials that support our inspection process.
- cavity machining tolerance
- ±0.01 mm
- first-off approval at the press
- 85%
- 100% as per print
- T2
How a part is checked
Incoming Material Inspection
Materials and components are checked against the order and drawing when they are received.
In-Process Inspection
Dimensions are measured at set points during manufacture, so deviations are found and corrected early.
Tool Trial Inspection
Sample parts from the trial run are measured against the drawing before the tool is approved.
Final Inspection
Finished tools and parts are measured against the drawing and approved before dispatch.
Measuring equipment
| Equipment | Range | Resolution |
|---|---|---|

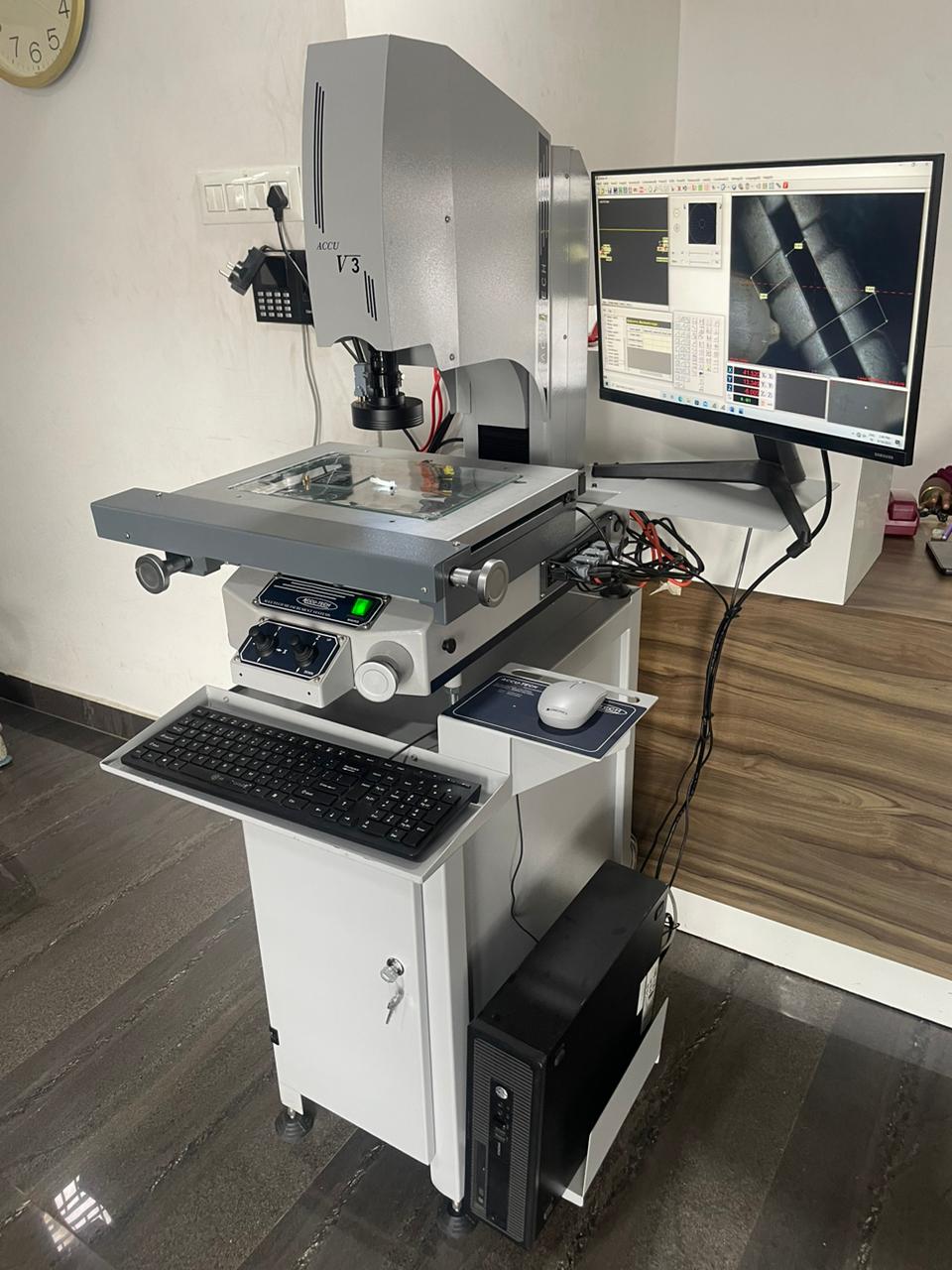

| Video Measuring System | 300 × 200 mm stage | 0.001 mm |
| Mitutoyo height gauge | 0–600 mm | 0.01 mm |
| Digital vernier calipers | 0–300 mm | 0.01 mm |
| Micrometers | 0–100 mm set | 0.001 mm |
| CMMOutsourced | 3D layouts | Accredited partner |
